Our Scope of Supply
Technical
Specifications
Typical ranges. Ask for parts outside them.
Brake drums
300 mm to 420 mm across, 25 kg to 70 kg
Radiator cores
Up to 1,200 mm in height
Batch
From 50 pieces per part number
Lead time
6 to 10 weeks after approval
Matched From
OEM number or your drawing
Packed
By part number, on pallets
What Comes With
Every Truck Parts Order
Drums That Run True
Balance and runout of every brake drum checked, with a balancing report for the order.
Coolers Leak Tested
Every radiator and cooler is tested under air pressure before it is packed, with the leak test report.
Springs Set to Load
Load and camber of leaf springs checked on samples from each batch, and hardness on every batch.
Ready for the Workshop
A packing list by part number and pallet, with photographs, so a workshop can fit parts from the pallet.
How Heavy Duty Truck Parts Are Made
- Casting and MachiningDrums, hubs, hangers and housings, cast in iron or steel and machined to the drawing.
- BalancingBrake drums balanced so they run true on the axle.
- Spring MakingLeaves cut, hot formed, quenched and tempered, shot peened, then set to load and camber.
- Core BuildingRadiator cores soldered in copper and brass or brazed in aluminium, then fitted with tanks.
- Leak TestingEvery radiator and cooler tested under air pressure before it is packed.
- Forging and Heat TreatmentKing pins, U bolts and axle parts forged, hardened and ground.
Common Truck
Part Materials
Grey and Ductile Iron
Brake drums in grey iron EN-GJL-250 or alloyed grey iron; hubs, hangers and brackets in ductile iron EN-GJS-500-7.
Spring and Alloy Steel
Leaf springs in 50CrV4 or 55Cr3; king pins and U bolts in 20MnCr5 case hardening steel or 42CrMo4.
Standards We Work To
- EN 1561, Grey IronEN-GJL-250 for brake drums
- EN 1563, Ductile IronEN-GJS-500-7 for hubs and hangers
- EN 10089, Spring Steel50CrV4, 55Cr3
- EN 10084, Case Hardening20MnCr5 for king pins
- EN 10204, CertificatesType 3.1 material test certificate
Extra Checks
When You Ask for Them
- Fatigue test of spring samples
- Magnetic particle inspection of king pins and hangers
- Salt spray test of painted parts
Search Materials and Grades
| Part | Material | Grades | Finish and Treatment |
|---|---|---|---|
| Brake drums | Grey cast iron, or alloyed grey iron | EN-GJL-250 | Machined, balanced, painted outside |
| Hubs, hangers and brackets | Ductile iron, or cast steel | EN-GJS-500-7 | Machined and primed |
| Leaf springs | Spring steel | 50CrV4, 55Cr3 | Hot formed, quenched and tempered, shot peened, painted |
| King pins and U bolts | Case hardening steel, or alloy steel | 20MnCr5, 42CrMo4 | Forged or turned, heat treated, ground |
| Radiator cores | Copper fins with brass tubes, or brazed aluminium | To the OEM specification | Soldered or brazed, leak tested |
| Charge air coolers | Brazed aluminium | To the OEM specification | Pressure tested |

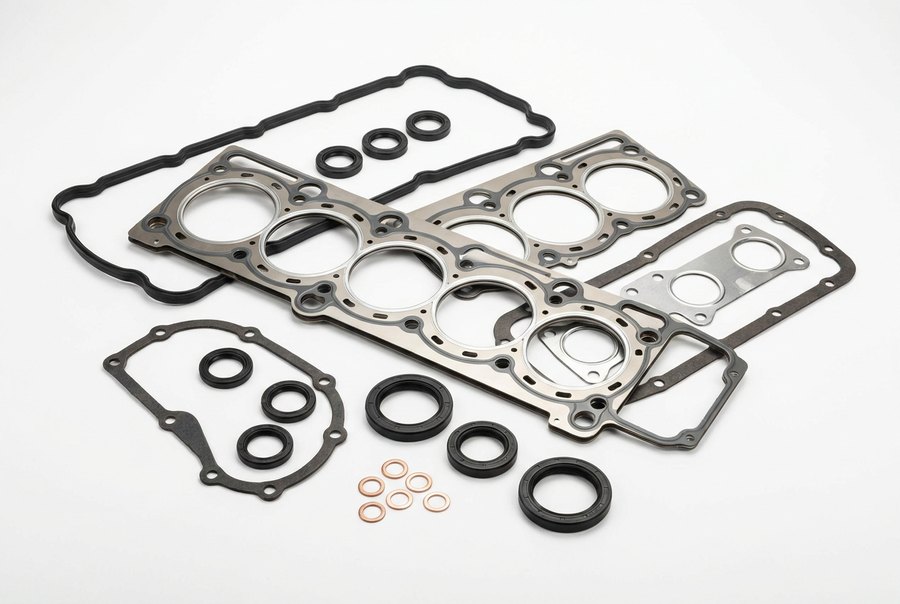

| Engine gaskets | Multi layer steel, composite, graphite or copper | To the OEM specification | Matched to the OEM number, the engine model or a sample |
